Part No: T9351 - Diverter Valve for Audi, VW, Skoda and Porsche applications
Diverter Valve for Audi, VW, Skoda and Porsche applications
Diverter Valve for Audi, VW, Skoda and Porsche applications
Diverter Valve for Audi, VW, Skoda and Porsche applications
-
Introducing The New DV+ For Late-Model VAG And Euro Applications!
GFB’s DV+ solution couldn’t be simpler – keep what works and replace what doesn’t.
BEWARE of counterfeit products; ONLY buy from authorized dealers on our website
Patents and Design Patents U.S.A, Australia, China, PCT Patents Pending
Retains the factory solenoid coil for seamless integration
Replaces plastic valve parts with metal for reliability and strength on chipped engines
Direct-fit replacement with GFB’s TMS benefits
Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

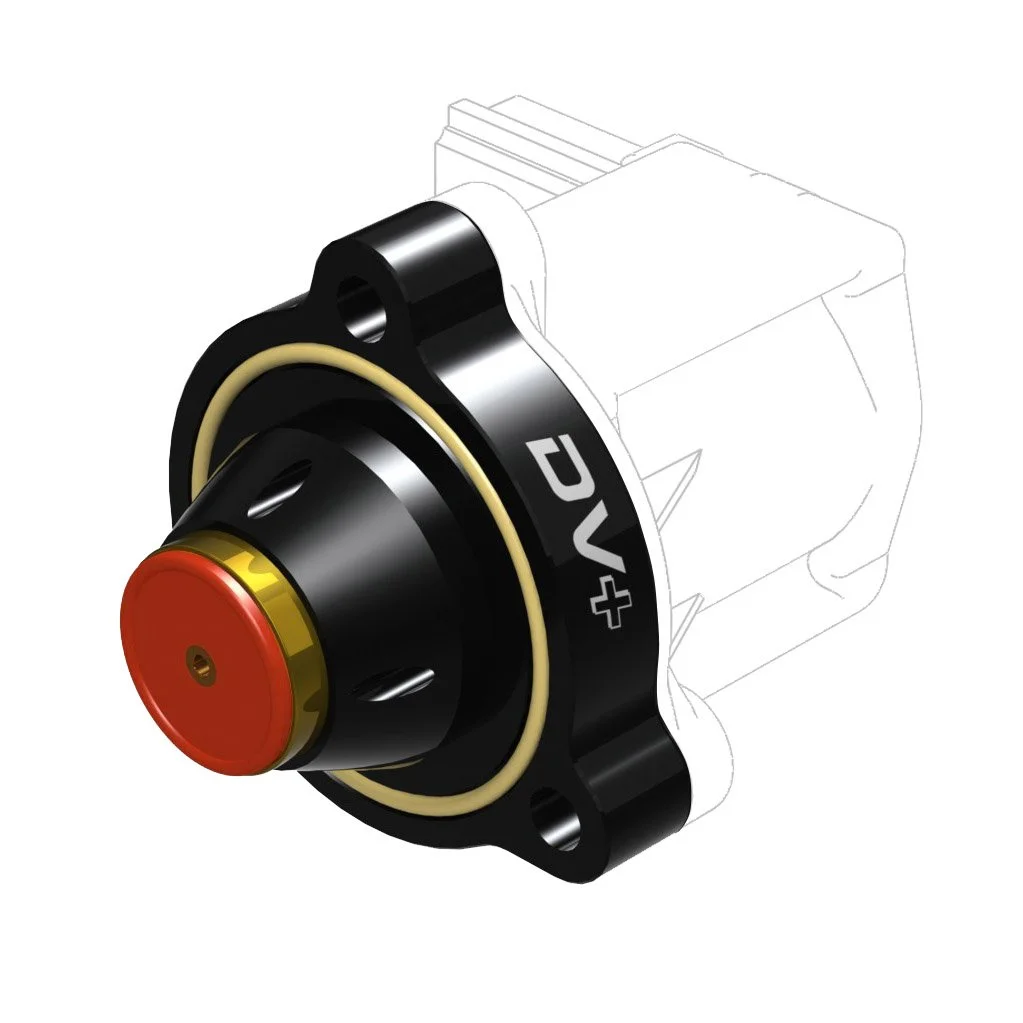

GFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles.
The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances.
The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.
Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.
GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.
The DV+ Story: Better Performance – More Reliable
Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.
However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.
Common OE Problem #1
The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning.
Common OE Problem #2
The plastic piston-type leaks far more than most people realise (by design, not from wear), and doesn’t always close after a high-boost gear shift.
Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.
With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity – more of a compromise than a solution.
GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.
The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run.
That’s not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn’t matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.
This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.
Unnecessary Replacement Kits Are A Compromise, Not A Solution
Protected by Patents in United States of America, China & Australia
PCT Patents Pending
-
When you just want performance
European Manufacturers Are Pushing Their Engines To The Limit. Get A DV To Match.
GFB’s DV+ diverter valve range offers a direct-fit performance solution for the weak factory diverter valves used on many modern vehicles.
PCT Patents Pending
By retaining the factory ECU control and recirculating the vented air, the DV+ is a purely performance-oriented product that offers the following benefits:
Sharper throttle response
Faster boost recovery on gearshift
Solves boost leaking issues
Built to last
Make sure you purchase ONLY from our approved dealers to be sure you are getting a genuine product. We are aware of counterfeits on Ebay and Amazon and getting these removed but they do not notify any purchasers of counterfeit product After purchasing.
-
-
-
DV+ Diverter Valve with TMS advantage. Protected by Patents in United States of America, China & Australia PCT Patents Pending also suits:
VW Jetta GLI Mk6 2.0T 2010-2013 (This Will Not Fit Facelifted Models With The EA888 Gen 3 Engine) Note : 100% Direct Bolt-On Installation For Your Selected Car, No Extra Adaptors Or Mods Required.
VW Tiguan 2.0 TSI 11-16
VW Jetta Mk5 2.0T 2005-2010
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013
VW Golf GTI Mk5 2.0TFSI 04-09
AUDI 8P (2003-2013) 1.8TFSI
AUDI B8 (2007-2015) 1.8/2.0 TFSI
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013
AUDI B8 (2007-2015) 1.8/2.0 TFSI
SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013
SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-On
AUDI 8V (2013-On) 1.8/2.0TFSI
AUDI B9 (2016-On) 2.0 TFSI
AUDI A6 2.0TFSI (2006-2011)
VW Passat B6 2.0 TSI 05-11
AUDI Q5 2.0TFSI (2008-2016, 8R)
AUDI TTRS 8J 2.5 TFSI 09-14
AUDI TT 8J 2.0 TFSI (EA888) 10-14
AUDI B8 (2007-2015) 1.8/2.0 TFSI
AUDI S1 8X (2014-On) 2.0TFSI
AUDI TT 8S 2.0TFSI 2014-2018
AUDI RS3 8V (2015-2017)
AUDI B9 (2015-2020) 2.0TFSI
VW Tiguan 2.0 TSI 16-On
AUDI A6 2.0TFSI (2011-2018)
VW EOS 2.0 TFSI 2006-2015
VW Tiguan 2.0 TFSI 07-11
AUDI B8 (2007-2015) 1.8/2.0 TFSI
AUDI TTRS 8J 2.5 TFSI 09-14 Note : Direct Fit
SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-On
AUDI 8V (2013-On) 1.8/2.0TFSI
AUDI Q5 2.0TFSI (2017-On, FY)
AUDI A6 2.0TFSI MHEV C8 (2018-On)
AUDI B7 (2005-2008) 2.0TFSI
VW Tiguan 2.0 TFSI 07-11
AUDI TTS 8J 2.0 TFSI 06-14 Note : Direct Fit
AUDI A1 2010-2014 1.4TFSI (90kW/122hp)
AUDI B8 (2007-2015) 1.8/2.0 TFSI
VW Golf Mk6 1.4 TSI (Turbo Only, NOT Twincharged) 08-13
AUDI S3 8P (2006-2013) 2.0TFSI
AUDI TT 8J 2.0 TFSI (EA888) 10-14 Note : Direct Fit
VW Golf GTI Mk7 2.0TSI 2014-2020
VW Golf GTI Mk7 2.0TSI 2014-2020
SKODA Superb 2.0TSI (162kW) 2015-On
AUDI TTRS 8S 2.5 TFSI 16-On
VW Scirocco Mk3 1.4 TSI (Turbo Only)
VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On
AUDI 8V (2013-On) 1.8/2.0TFSI
VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On Note : Non-MQB Models (I.E. USA) With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.
VW Golf R Mk6 2.0TSI 08-13
VW Tiguan 2.0 TSI 11-16
AUDI 8P (2003-2013) 2.0TFSI
VW Golf GTI Mk5 2.0TFSI 04-09
AUDI TT 8J 2.0 TFSI (EA113) 06-10 Note : Direct Fit
AUDI 8P (2003-2013) 2.0TFSI
VW Golf GTI Mk6 2.0TSI 08-13
AUDI Q5 2.0TFSI (2008-2016, 8R)
VW Polo GTI (1.8TSI 2015-2017)
VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On Note : Non-MQB Models (I.E. USA) With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.
AUDI Q5 2.0TFSI (2008-2016, 8R)
AUDI B9 (2015-2020) 2.0TFSI
AUDI RS3 8V Facelift (2017-On)
VW Polo GTI (2.0TSI 2017-On)
AUDI A1 1.8TFSI 2015-On
VW Golf Alltrack 1.8TSI 2014-On
AUDI B9 (2016-On) 2.0 TFSI
AUDI RS3 8P (2011-2012)
VW Scirocco R Mk3 2.0t FSI (EA113) 06-13
AUDI 8P (2003-2013) 2.0TFSI
PORSCHE Macan 2.0 (2016-On)
VW Golf GTI Mk7 2.0TSI 2014-2020
VW Scirocco Mk3 2.0t FSI
VW Jetta GLI Mk7 2.0T 2018-On
